Engineered Advantages
- Direct-Drive System — Reduces maintenance and eliminates belt-driven wear components.
- ASME-Certified Pressure Vessels — Heavy-duty construction ensures reliability and operational safety.
- Low-Maintenance Design — Thomas Precision simplified mechanical seal assembly design minimizes downtime and servicing costs.
- Stainless Steel Sanitary Frame — Built for easy cleaning and demanding washdown environments.
- Configurable Scraper Systems — Multiple shaft, blade, and seal arrangements available to suit product requirements.
- Flexible Heating and Cooling Media Compatibility — Suitable for ammonia, steam, brine, glycol, and more.
- Multiple Tube Material Selections — Nickel, stainless steel, and carbon steel options available with optional hard chrome plating.

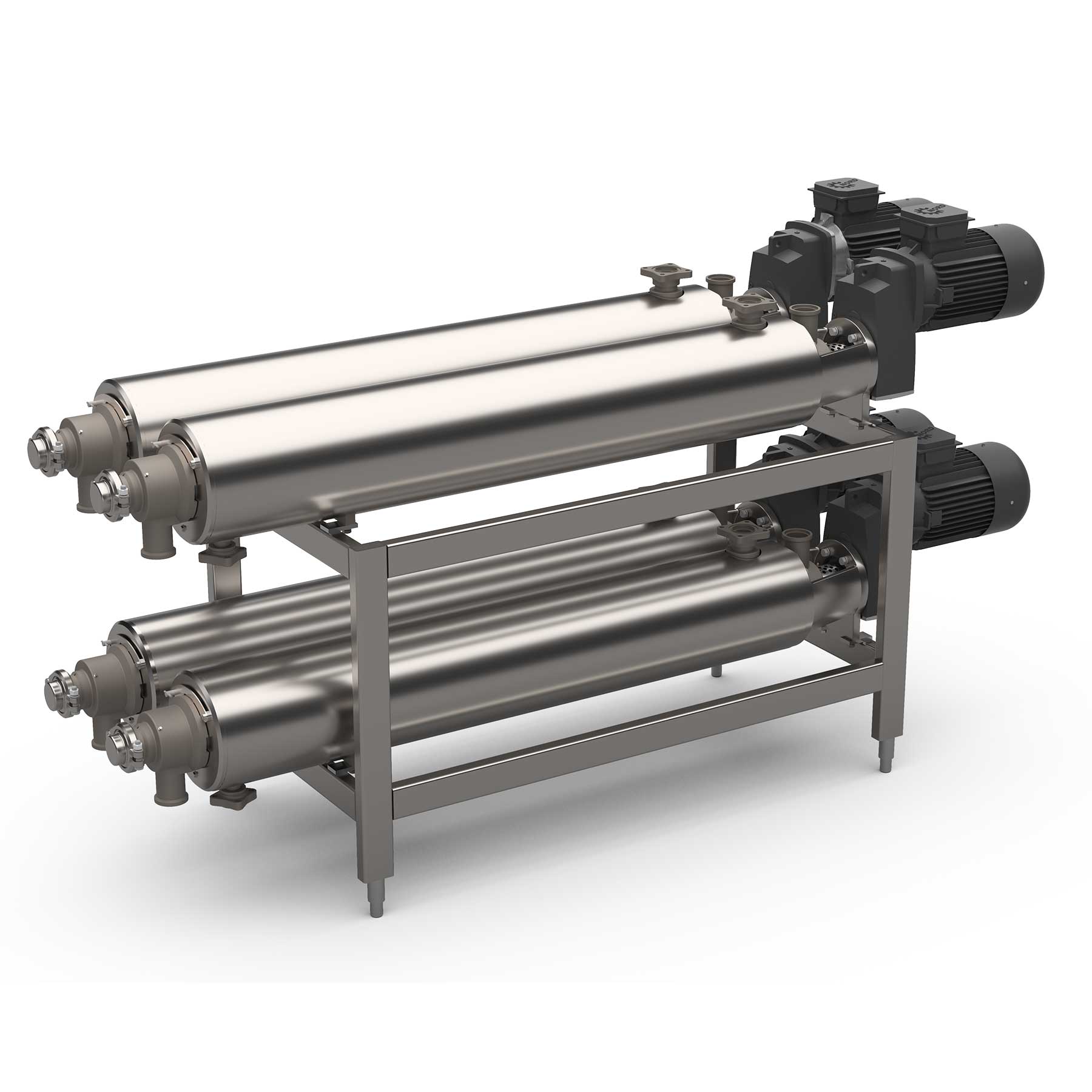

- Modular Package Configurations — Available in single or multi-tube system arrangements.
Built to Perform
- Maintains consistent product temperature and quality through precise scraped surface heat transfer.
- Continuous processing of highly viscous and difficult-to-handle products, including:
- Ground, mechanically separated, or emulsified meat products
- Dairy and cheese products
- Syrups
- Peanut butter and other nut butters
- Butter and margarine
- Cosmetics
- Pet food products
- Oils
- Chemicals and industrial products
Machine Specifications
| Model | Heat Transfer Area | Standard Drive | Features |
|---|---|---|---|
| 6×72 | 9 ft² | 20 HP, 480 VAC, 3-Phase | Direct drive. Full range of shaft, tube, blade, and seal options. |
| 6×84 | 11 ft² | 20 HP, 480 VAC, 3-Phase | Direct drive. Full range of shaft, tube, blade, and seal options. |
*Weight and overall dimensions vary based on the number of units and stand configuration. Contact us for system-specific details.
